Side Mounted Squeeze-O-Turn

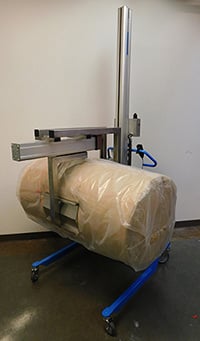

This lifter is used in conjunction with Building Materials to support large rolls of insulation.  For this project we needed to grip the rolls in a different orientation than our standard Squeeze-O-Turn arms allow.  The insulation rolls had to be rotated without interference from the lifter arms.

The user will lift the Squeeze-O-Turn arms up and over the insolation roll, lower the arms to the center of the roll and squeeze until the load is secured.  Afterwards, the user will rotate the roll core horizontal, lower the roll to the drop off height, and open the Squeeze-O-Turn arms.

Check out the demo video and photos below for more details:
