EXPAND-O-TURN®

EXPAND-O-TURN®

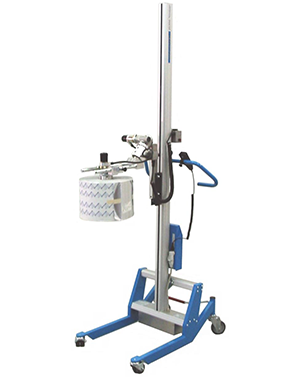

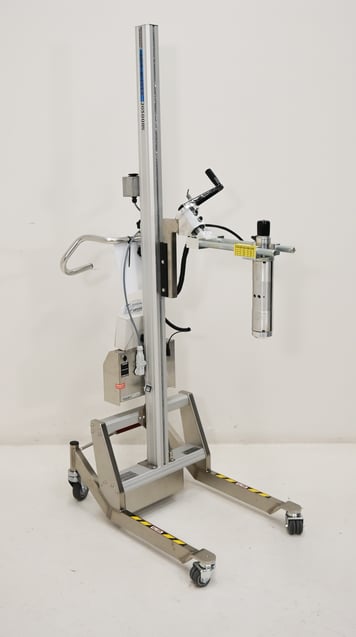

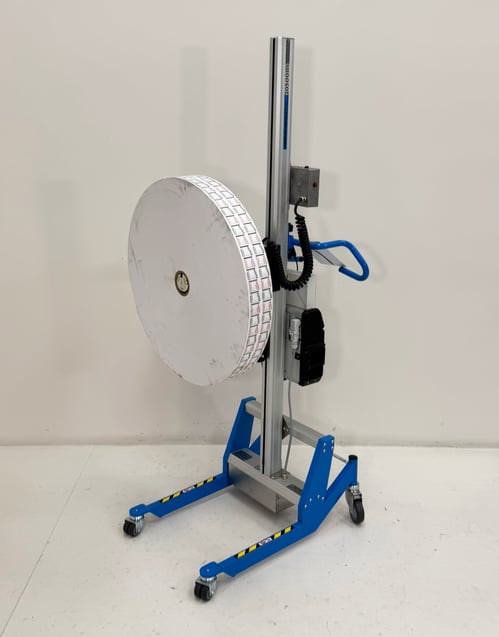

The EXPAND-O-TURN® is an electric core expander designed for handling paper and film rolls. It allows operators to lift rolls weighing up to 300 pounds and manually rotate them to various heights in a horizontal position. By inserting the expander into the roll's core and pressing a button, the roll is gripped from the inside. Built-in safety features prevent accidental release, and an optional electric rotator enables effortless rotation of heavier rolls. Quick-disconnecting expanders are available for 3 and 6-inch cores, allowing easy transitions between different-sized expanders to accommodate various products. An Anti-Telescopic attachment is also offered for stabilizing rolls weighing between 50-100 pounds.

Product Details

FEATURES
  • Electric Core Expander: Designed for handling paper and film rolls efficiently.
  • Load Capacity: Handles rolls up to 300 lbs, providing versatility for different sizes of rolls.
  • Core Grip: Expands to securely grip the roll’s core for safe lifting and rotation.
  • Manual Rotation: Allows for rotation of the roll from vertical to horizontal or vice versa.
  • Pendant Hand Control: Used to control lifting and rotation, providing ease of use for the operator.

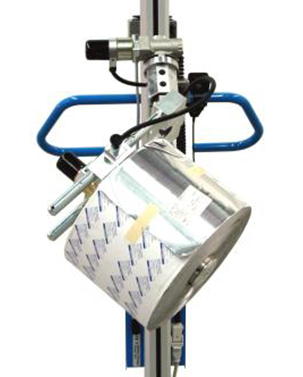

  • Optional Electric Rotator: Assists with rotating heavier rolls.
  • Quick Disconnect Expanders: Available for 3-inch and 6-inch cores, allowing easy transitions between different-sized expanders.
  • Anti-Telescopic Attachment: For stabilizing smaller rolls (50-100 lbs) during operation.
BENEFITS
  • Increased Efficiency: The EXPAND-O-TURN® helps to handle and rotate heavy rolls with ease, reducing manual labor and improving operational speed.
  • Ergonomic Design: By securely gripping the roll's core, it reduces strain on operators and minimizes the risk of injury.
  • Versatility: The tool works with various roll sizes, thanks to the quick disconnect expanders and optional electric rotator.
  • Enhanced Safety: The pendant hand control ensures precise control of lifting and rotation, reducing accidents and mistakes.
  • Time-Saving: The electric rotator option speeds up the rotation process, improving overall productivity.
  • Cost-Effective: The system’s ability to handle different-sized rolls with adjustable components allows for a wider range of applications without needing multiple tools, reducing costs.
  • Stable Handling for Smaller Rolls: The Anti-Telescopic attachment helps secure smaller rolls, providing better stability during operations.
APPLICATIONS
  • Food & Beverage
  • Pharmaceutical
  • Chemical
  • Automotive
  • Logistics
  • Wood & Steel
RESOURCES
TECHNICAL SPECIFICATIONS
PRODUCT LINE: Accessories

Compatible Lifting Solutions

We are the lifting and moving solutions company, offering smart, smooth materials handling systems for sustainable safety at work.

Roll Handling

General Application

Our team builds each piece of equipment custom fit to your specifications. Contact us for a quotation to better understand price structure.
